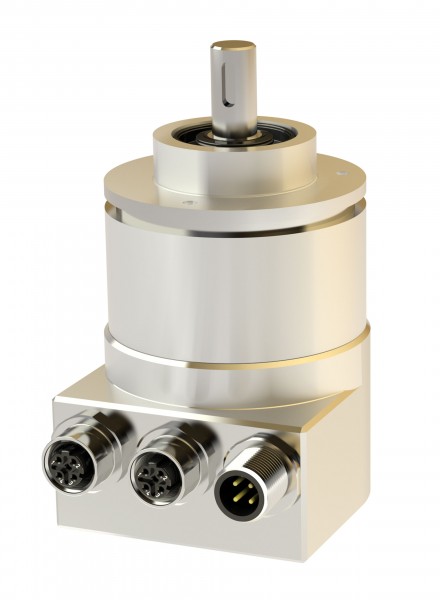

Absolute encoder TRT58-KPA**4096S3MT01

SIL2 PLD instock
Preview: Absolute encoder TRT58-KPA**4096S3MT01 Preview: Absoluter Drehgeber radial SIL2
Image may differ
Absolute encoder TRT58-KPA**4096S3MT01
Absoluter Drehgeber radial SIL2

Price on request

Prices plus VAT plus shipping costs

Delivery time appr. 3-5 workdays • 13 left in stock

Technical customisation

Please fill in the mandatory fields below.

reset

Please select the type of code you require.

More information
reset

Bitte wählen Sie die gewünschte Auflösung aus.

More information
Reset configuration
** Required fields

Quantity

Description Downloads
Description
Recording of the angular position and revolutions by means of Hall sensors - absolute multiturn... more
Close menu
Product information "Absolute encoder TRT58-KPA**4096S3MT01"

Recording of the angular position and revolutions by means of Hall sensors - absolute multiturn transmission for up to 4096 revolutions - data output plus parameterisation and diagnosis via PROFINET. Robust housing manufactured from seawater-resistant aluminium or stainless steel - stainless steel shaft - ball bearing with radial shaft seal-sensor circuit consisting of ASIC with Hall elements - electrical connection via M12 connector or cable outlet. The Profinet interface according to IEC 61158 / 61784 or PNO specifications order No. 2.712 and 2.722, version 2.2, is integrated into the model series TRT absolute encoders. Real time classes 1 and 3 are supported, i.e. Real Time (RT) and Isochronous Real Time (IRT) plus the requirements of conformance class C. To achieve the SIL2 level, the TRT/S3 contains addtitional internal monitoring mechanisms as well as safe communication via PROFIsafe. The PROFIsafe protocol is implemented according to the PROFIisafe Profile for Safety Technologie version 2.4 (PNO Order No. 3.192)

Product category: Rotary encoders
Inkremental or absolute: Absolute
Single- or Multiturn: Multiturn
Design: 58 mm
Flange and shaft: Clamping flange, shaft 10 mm with feather key
Housing material: Aluminium
Resolution: Selectable within the technical customisation
Code type: Selectable within the technical customisation
Measuring range: 4096
Profile: PROFIsafe to PROFINET - SIL2
Electrical connection: Connector outlet radial
Interface: PROFIsafe over PROFINET
Electrical and/or mechanical variant: Standard
Certification: PLd
SIL2
SIL2/PLd
Special feature: In stock
PLd
SIL2
SIL2/PLd
Speed monitoring
